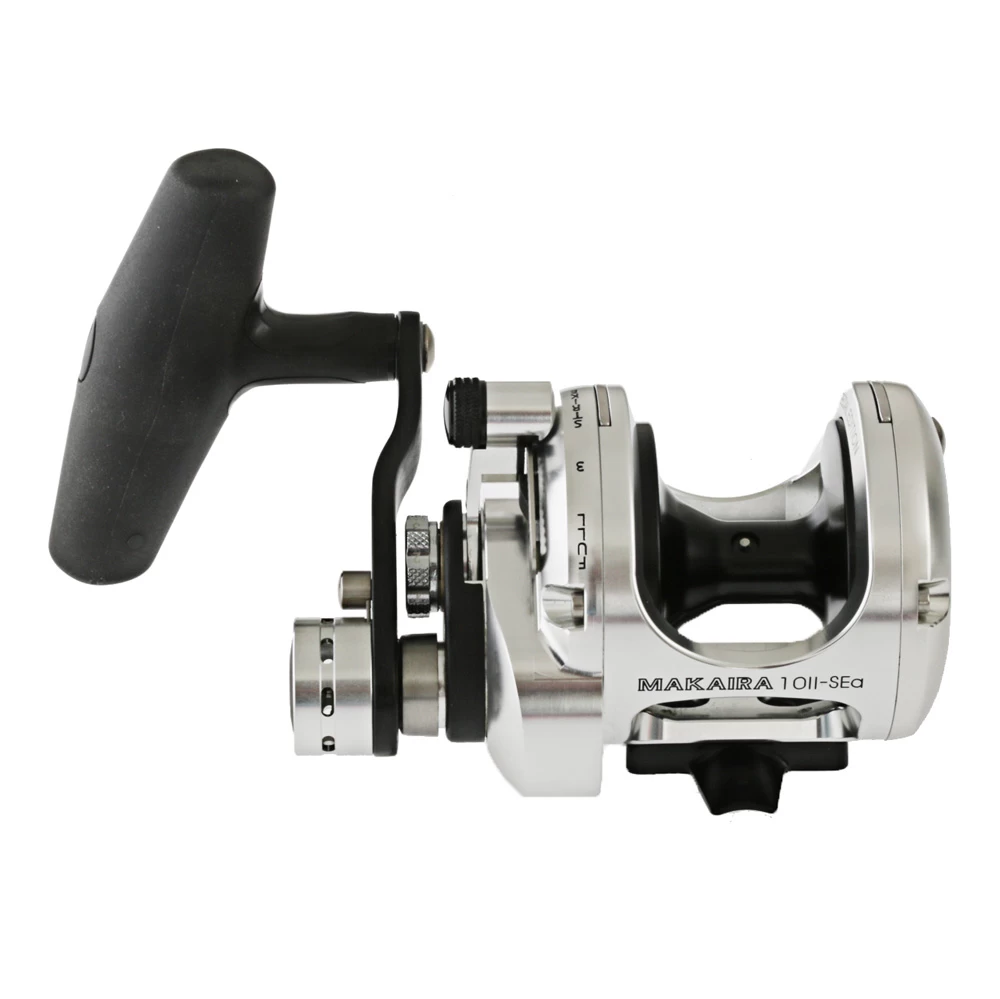

Okuma Makaira 10II SEa 2-Speed Lever Drag Reel Silver

Design, drive, drag and durability

A special edition of the Makaira that features a silver finish, the Okuma Makaira 10II SEa 2-Speed Lever Drag Reel is designed for a variety of saltwater game fish. It’s smooth as it is sleek with its Carbonite Dual Force drag system and its helical cut gears. It also features a new oversized handle and lower low speed gearing. The SEa is ideal if you want your gear to stand up to the most intense use. The new Makaira SEa features a carbon Dual Force Drag system for exceptional drag performance, high drag capacity, and durability. This new reel sets a standard that will advance the ability and redefine the expectations of tournament crews, long-range anglers and private boaters.

Machined Rigid Frame
Okuma’s Machined Rigid Frame construction incorporates a one-piece fully-machined aluminium frame. These rigid bar-stock aluminium frames are the ultimate in precision alignment and tolerances withstanding more pressure and torque than any other material used in the industry for frame materials.

T-Bar Handle
The patented design of the T-Bar handle offers a true ergonomically correct angle to ensure you get maximum power with minimum fatigue. The T-bar takes full advantage of the natural dynamics of the human hand, wrist and forearm to help sustain power and endurance.

2-Speed Gearing
Okuma’s 2-speed technology incorporates two sets of stainless steel main and pinion gears, allowing you the option of a high-speed gear ratio or a powerful low-speed gear ratio for maximum power and torque. To shift gears, it’s as easy as pushing a button or popping a lever with Okuma’s unique shifting design to obtain the appropriate gear ratio you desire.

Lever Drag Dual Force Drag
For extremely smooth and strong drag outputs, Okuma’s Makaira lever drags are designed with a patented Dual Force Drag system. This drag system is specifically engineered to be mounted in the right side of the spool, designed around a Pull Bar Drag System which keeps all mechanical workings in precise alignment and places no pressure on the frame. This system works in conjunction with a custom designed thrust bearing, which alleviates side load at heavy drag settings.

Helical Cut Gearing
Makaira lever drag reels utilise helical cut main and pinion gears. This process allows for improved gear meshing which equates to improved gear smoothness. The angled teeth found in helical cut gears engage more gradually than straight cut or spur gear teeth. This allows helical gears to run smoother and quieter compared to spur gears. Spur gears cause impact stress and noise, because of the hard meshing and cannot take as much torque as helical gears because their teeth are receiving impact blows as they mesh together.

Silent Anti-Reverse
The Makaira’s proprietary anti-reverse system allows for a smoother and quieter feeling. Most reels in the market hide their rough gear quality by the noise and vibration caused by the engagement and clacking of the anti-reverse pawls. This anti-reverse system is supported by a 12-point double dog anti-reverse pawl system. As you turn the reel forward the anti-reverse pawls slide open allowing a friction free and quiet retrieve. As soon as the handle is stopped or pulled backwards the anti-reverse pawls are engaged into place by their drive shaft actuated sliding system.

Corrosion Resistant Coating
CRC combines Okuma’s proprietary HDG-II gearing system, which offers exceptional anti-corrosive properties compared to standard gears, with a coating of Corrosion X HD to all internal and external parts. The CRC process penetrates and bonds to the metal, which helps significantly toward long term protection.

Okuma Makaira 10II SEa 2-Speed Lever Drag Reel Features:

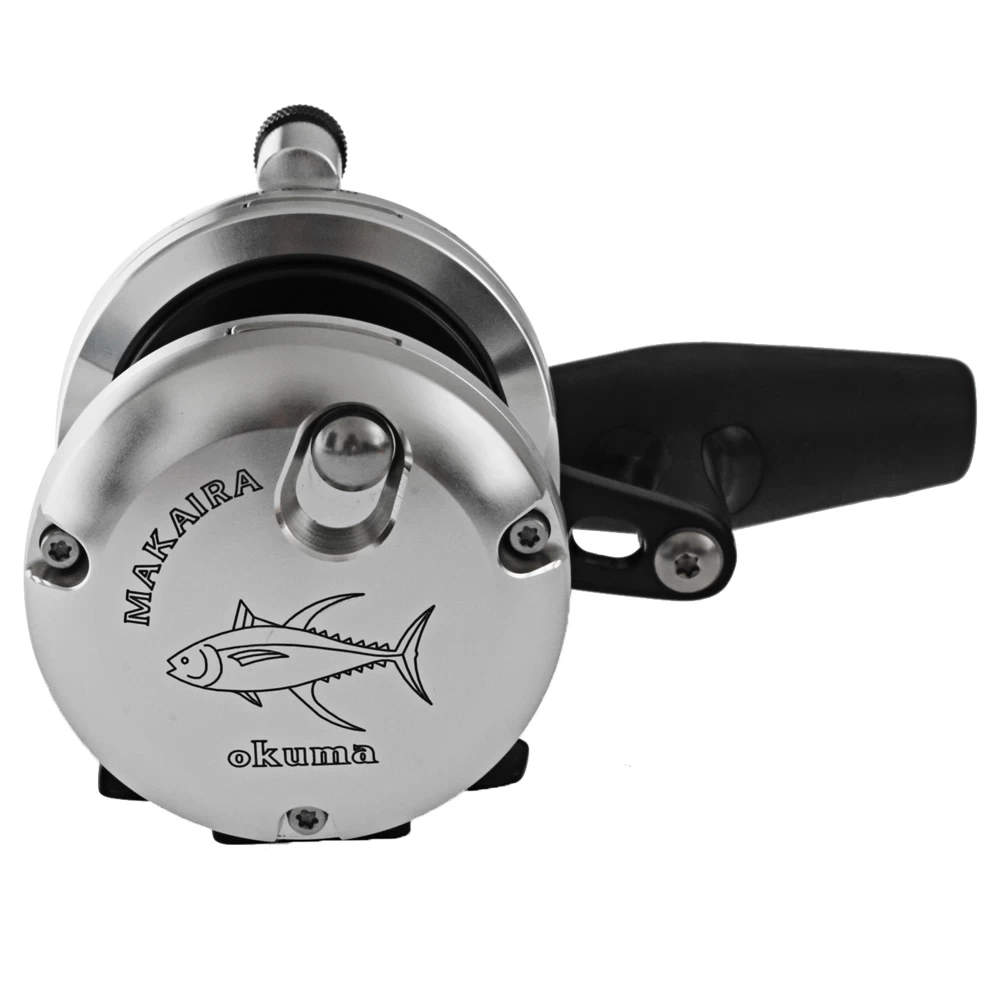

• Machined etched Marlin logo on left side plate
• 6061-T6 Machined aluminium frame with forged side plates
• Proprietary hybrid corrosion resistant stainless steel gearing
• Helical cut gears for extreme smoothness and gear meshing
• Two-speed gearing systems
• Two-speed gear shifter housing
• Cold forged, Type-II anodised, machined aluminium spool
• CRC: Corrosion Resistant Coating process
• Patented spool pin system for use with braided or mono lines
• Carbonite Dual Force drag system featuring Cal’s universal drag grease
• Custom designed thrust bearing: alleviates side load on heavy drag settings
• 4-pcs ABEC-5 precision Sapporo stainless steel rubber sealed ball bearings
• Double dog, proprietary silent anti-reverse system
• Ratcheting drag lever and drag cam for precise drag setting
• Patented T-Bar handle with Easy Roll graphite insert
• Heavy duty stainless steel ratcheting clicker system
• Heavy duty, precision stainless steel drive and spool shafts
• Type-II gold anodized frame, side plates, spool, drag lever and handle
• Open top frame design on MK-10II
• Lug and plug system
• Machined thumb rest on rear cross bar for improved ergonomics
• Forged aluminium full hard anodised reel foot and reel clamp
• Precision placement of drain holes maximises water removal from reel
• Special screw ports around side plate screws reduces water/corrosion build-up

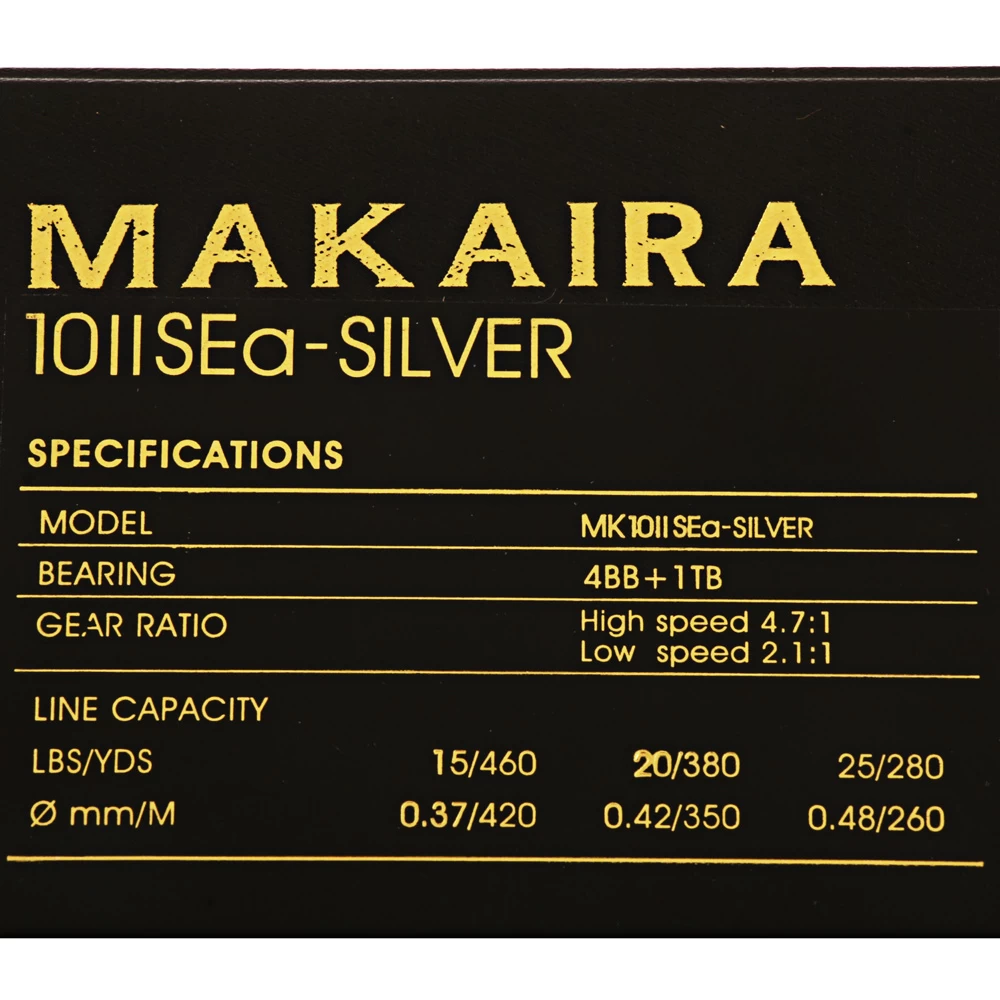

Okuma Makaira 10II SEa 2-Speed Lever Drag Reel Specifications:

• Model: MK-10II SEa (Silver)
• Gear ratio: 4.7:1 (high), 2.1:1 (low)
• Bearings: 4BB + 1TB
• Weight: 740g
• Line retrieve: 85.1cm and 38.1cm
• Mono line capacity: 0.37/420, 0.42/350, 0.48/260 mm
• Max drag at strike with freespool: 12.3kg
• Max drag at full with freespool: 15.4kg
• Frame style: Topless
